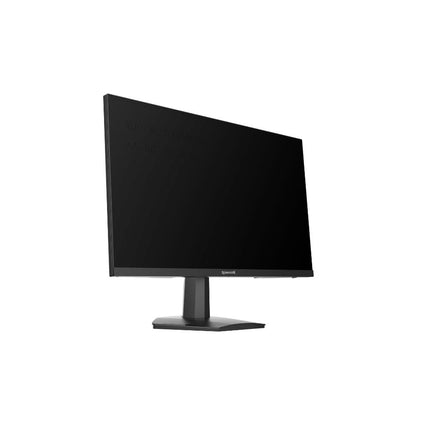

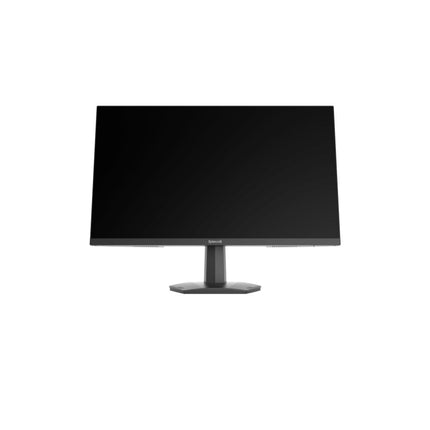

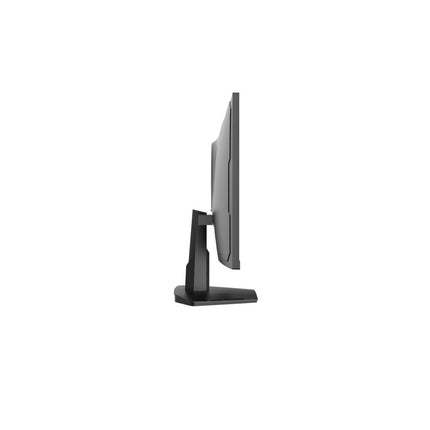

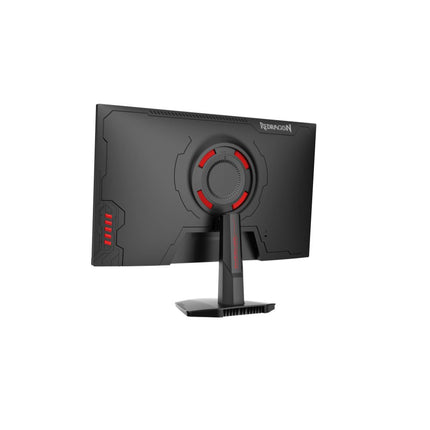

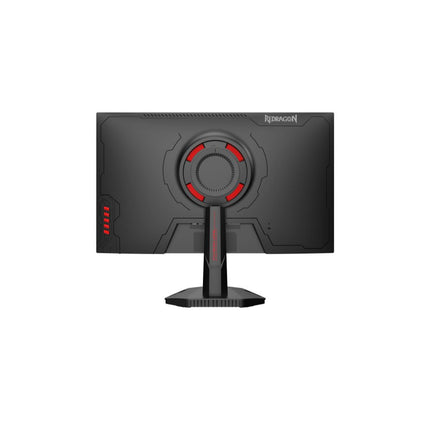

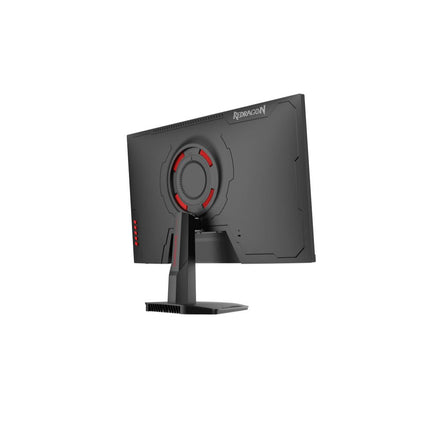

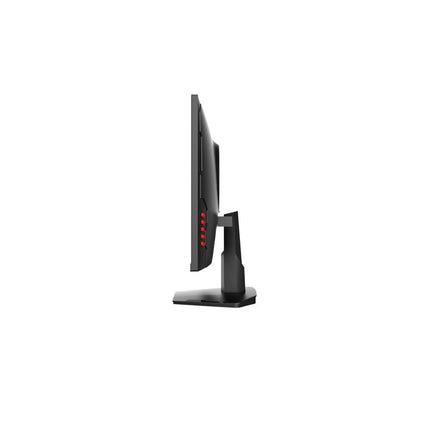

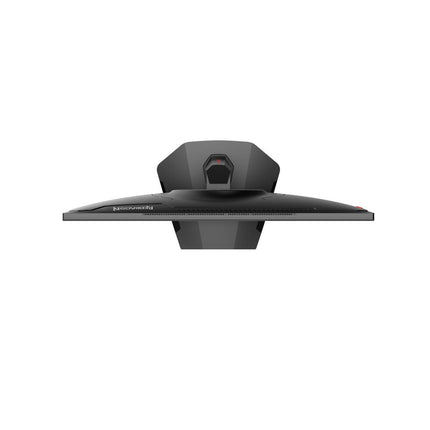

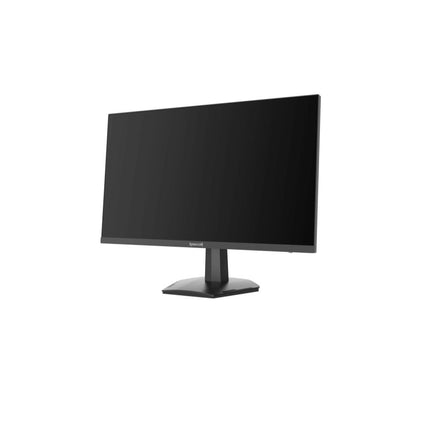

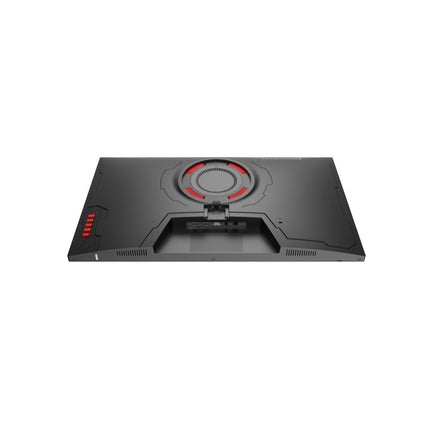

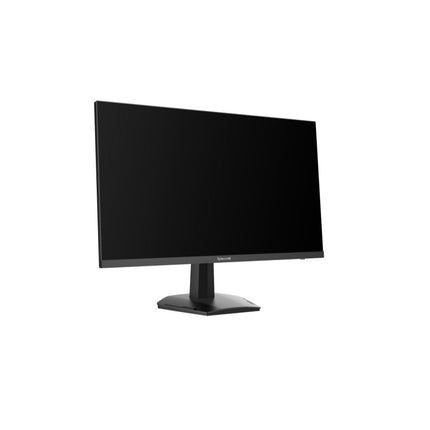

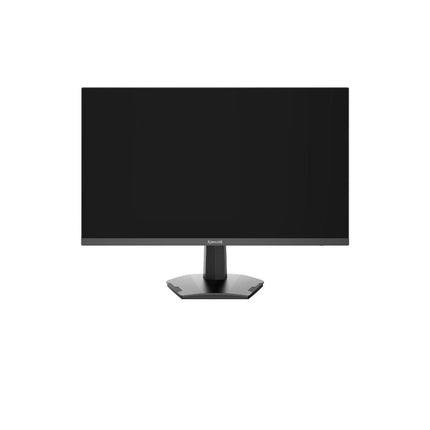

Redragon 27″ IPS 180Hz MG27X5 Flat Monitor
LCD Panel Details:
| Display size |
|
|
| Brightness(Typical) | 250cd/m2 (Typical) | |
| NTSC | 90%(DCI-P3) | |
| Contrast(Typical) | 1000:1 (Typical) | |
| Active Area(mm) | 527.04(H)x296.46(V) | |
| Pixel Pitch(mm) | 0.2745(H)x0.2745(V) | |
| Resolution (H x V) | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Response Time(Typical) | GTG 5ms (W OD) / MPRT 1ms | |
| View Angles LR,UD(CR>10) | H 178°/ V 178° | |
| Panel Surface | Anti-glare | |
| Display Colors | 16.7M colors |
PC Input Range:
| Horizontal Freq. | 30 to 180KHz |
| Vertical Freq. | 48 to 180Hz |
| Max. display frequency (Resolution H*V/Fv) |
1920 x 1080/165Hz |
Interface:
|
Input 1 |
HDMI 1.4 x 2 |
| Input 2 | DP1.2 x1 |
| Input 3 | DC x1 |
| Input 4 | N/A |
Output TermiN/Al
| USB | N/A |
| Earphone | Audio out x 1 |
| Speaker(Typic ) | N/A |
Power
| Consumption(Typical) | On: 30W(Max） Standby<=0.5W, Off<=0.5W |
| Power Range | AC 100-240V 50/60Hz |
| Power Mode Indicator Light |
Power on : White (LED) Power saving : White Flicker (LED) |
Operating Condition
| Temperature | 0℃ ～ 40℃ |
| Humidity | 20% ~ 85%, non-condensing |
Physical
| Dimension (W*D*H) |
541.93 x 214.53 x 438.02mm |
| Packing Dimension (W*D*H) |
616 x 142 x 437mm |
| Net Weight | 3.5 kg |
| Gross Weight | 4.7 kg |
| Tilt | -5°±3°~ 15°±3° |
| High Adjustable Arm | N/A |
| Swivel | N/A |
| Pivot | N/A |
| Kensington Lock | YES |
| VESA Mounting | YES 75 x 75 mm |
Controls
| Front Control | Menu, Up(+),Down(-), Enter, Power |
| On Screen Display | HKC Standard OSD format |
| Color | WARM,COOL, User Mode |
| Preset Mode | Standard, Movie, Eye care,FPS,RTS |
Accessory
| Power Cable | N/A |
| Adapter | 12V/2.5A |
| VGA Cable | N/A |
| Audio Cable | N/A |
| DVI Cable | N/A |
| HDMI-DVI Cable | N/A |
| HDMI-HDMI Cable | N/A |
| DP Cable | YES（1.5M） |
| User Manual(Paper) | YES |
Loading Without pallet
| 40' HQ | 1323 |
| 40' Standard | 1134 |
| 20' 'Standard | 540 |
Loading with pallet
| 40' HQ | TBD |
| 40' Standard | TBD |
| 20' 'Standard | TBD |
Color plan: black
Green Product: (Jan. 2009): Yes
Certification: TBD
Windows 8: Yes
Windows 10: Yes
Others: PC99 function(must)，Flicker-free，blue-free,G-SYNC Comptible;Freesync(Adaptive sync)
